REDLINE 360c
REDefine the Road
It’s the best of the best. We didn’t raise the bar, we shut it down. The Redline 360c sets the new standard for radar detectors with extreme detection range, 360° directional awareness, 100% true stealth, MRCT/MRCD camera detection and the best overall performance from any detector. Get ready to REDefine the Road with the Redline 360c.
REDLINE 360c
Extreme Range. 360° Awareness. True Stealth.
Discounts for Military, First Responders, Teachers and Students throughSee Terms
REDEFINE
THE ROAD
The Escort Redline 360c radar detector delivers extreme performance for drivers who demand the very best. It leads the industry with the most advanced technology available in a radar detector, including top-of-the-line detection range and sensitivity, exceptional false alert filtering software, and true stealth against Radar Detector Detection (RDD) technology.
POWERFUL PERFORMANCE
The Redline 360c is the only radar detector built with a triple-antenna platform that is also paired with Low-Noise Amplifiers (LNA). It also features Blackfin® Digital Signal Processing (DSP) for extreme range, sensitivity, and performance.
EXCEPTIONAL ACCURACY
Other radar detectors can’t compare with the Redline 360c’s perfect balance of range and exceptional signal accuracy. Our advanced false alert filtering leverages built-in GPS and AutoLearn™ Intelligence to deliver the quietest ride.
CONNECTED COMMUNITY FOR LIVE UPDATES
Connect to the Drive Smarter® community through our companion app or directly through Wi-Fi and get live, shared alerts from other detectors and drivers across the country.
REDLINE'S GOT YOU COVERED
The Redline 360c is not for everyone, only those who demand the best of the best. We engineered the best performing detector for the people who expect high-end performance and maximum awareness for their drive.
EXTREME RANGE
Built for extreme range with a triple-antenna design and Low-Noise Amplifier (LNA) so you’ll have plenty of time to react
THE QUIETEST RIDE
Exceptional accuracy against false alerts delivers the quietest ride and full confidence you’ll know what’s a real threat
UNMATCHED INTELLIGENCE
A Blackfin® DSP chip plus Software Defined Radio (SDR) architecture provides incredibly powerful signal processing
SEE, BUT DON’T BE SEEN
Advanced stealth (invisible to all RDD – Radar Detector Detectors) technology ensures you stay completely anonymous
WELCOME TO THE RED ZONE
360° directional awareness, AutoLearn™ Intelligence, and shared network alerts give you an all-around protective shield
CONNECTED CAR COMPATIBLE
Built-in Wi-Fi enables Over-The-Air (OTA) software updates and connection to the Drive Smarter® network
AUTOLEARN™ INTELLIGENCE
GPS-based technology learns routes and silences repeated false alert locations
M2 AND SHIFTER COMPATIBLE
Build a complete driver alert system with the M2 smart dash cam and laser shifters
DEFENDER DATABASE
Connect to a continuously updated database of red light and speed camera locations
VARIABLE SPEED SENSITIVITY
Automatically adjusts detector sensitivity based on your speed for smarter alerts
DEVICE SETTINGS MANAGEMENT
Easily adjust your features, alerts, and settings on any supported device
SOFTWARE UPDATES
Download and update your device software through the Drive Smarter® app
Drive Smarter® App
SHARED NETWORK ALERTS
DEVICE SETTINGS MANAGEMENT
SOFTWARE UPDATES
MULTI-DEVICE MANAGEMENT
What’s in the box

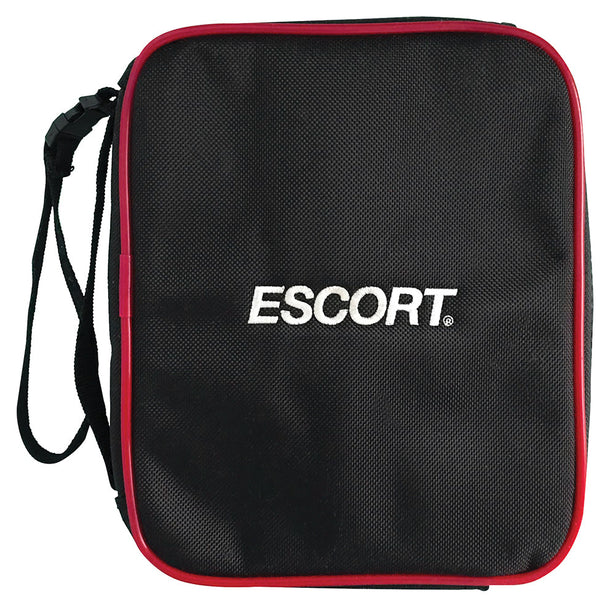

TRAVEL CASE
REDLINE 360c
SMARTCORD USB + MUTE
EZ MAG MOUNT
(Windows version compatible with Windows 7, 8, 10 and 11)
(Mac version compatible with version 10.10+. Not compatible with any Max Ci series or iXCi remote systems)
Item # 0100040-1
REDLINE 360c TECH SPECS
OPERATING BANDS
X-band 10.525 GHz ± 25 MHz
K-band 24.100 GHz ± 150 MHz
Ka-band 34.700 GHz ± 1300 MHz
Laser 904nm, 33 MHz Bandwidth
RADAR RECEIVER / DETECTOR TYPE
Dual Front, Single Rear Antenna with Three LNAs
(X band – front only; K, Ka and Laser – front and rear)
Superheterodyne, Synthesized Varactor-Tuned VCO
Software Defined Radio Receiver (SDR)
Blackfin DSP processor
PATENTED TOTALSHIELD TECHNOLOGY
LASER DETECTION
Quantum Limited Video Receiver
Multiple Laser Sensor Diodes
SENSITIVITY CONTROL
Highway, Auto, Auto No X and Auto Lo K
DISPLAY TYPE
Graphic Multi-Color OLED
Bar Graph
5 Levels of Brightness with Full Dark Mode
MUTE, AUTOMUTE AND SMARTMUTE
POWER REQUIREMENT
12VDC, Negative Ground
SmartCord USB Included
BLUETOOTH SMART (BLE)
WI-FI 802.11 B/G (2.4 GHz)
UNIT DIMENSIONS
1.3” H x 3.35” W x 5.13” D
USER PREFERENCES
User Mode: Advanced / Novice
Pilot: Scanning Bar / Full Word
Arrow Mode: Single / Multiple / Band
Display Color: Blue/Green/Red/Amber
Speed Display: On / Off
Cruise Alert: Off / 20 – 160 mph
Over Speed: Off / 20 – 160 mph
Over Speed Limit: Off / Spd Limit / 5 over / 10 over / 15 over / 20 over
Meter Mode: Standard/FR1/FR2/Spec/Expert/Simple
Tones: Standard / Standard+ / Mild
AutoMute: Low / Med / High / Off
AutoLearn: On / Off
Units: English / Metric
Language: English / Spanish
Voice: On / Off
GPS Filter: On / Off
Auto Power: Off / 1-8 Hours
Bands: X/K/KN1-KN4/Ka/KaN1-KaN10/Ka-POP/Laser/TSR
Markers: Other/RedLight/RedLight & Speed Cam/Speed Cam/Speed Trap/Air Patrol
Clear Locations: Marked/Lockouts/Defender/Format
Wi-Fi: On / Off
Bluetooth: On / Off
Auto Update: Off/Database/Firmware/All
Perform Update: Firmware/Database
Please note: Works with most vehicles. Some late model vehicles such as newer BMWs may have 12v outlets with non-standard dimensions, preventing full insertion of the SmartCord plug. Users with such vehicles may consider a Direct Wire kit or third-party solution. For more information, HERE.
What is included with RedLine 360c?

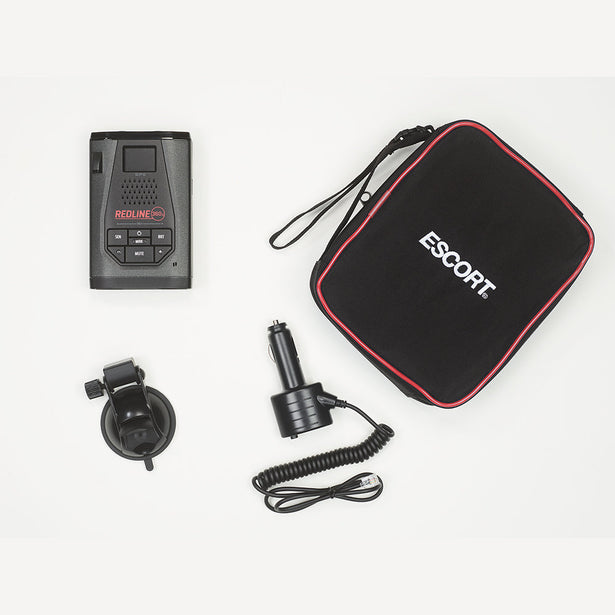

RedLine 360c comes complete with a soft-sided travel case, NEW EZ Mag Mount windshield mount, 12-volt SmartCord® USB and quick reference guide. If you would like a more permanent installation for your RedLine 360c, check out the DirectWire SmartCord® or the more basic DirectWire kit for hardwired installations.
Do you offer an earphone option?
Yes; older models require a mono earphone. Most current models have a stereo jack.
How do you mark a location?
To mark a particular location, press the "MRK" button. The display will read: "Mark?" Press the "MRK" button again to assign a label to it. There are four (4) labels: Red Light, Speed Camera, Speed Trap and Other. To scroll through the labels, simply press the volume (+) or (-) buttons until you reach the desired label. Once you've selected the label, press the "MRK" button again to confirm.
How do you block a false alert?
To lockout a false alert, (X, K or Laser only) press the mute button three (3) times, (either on the detector or the SmartCord®) during the alert. Pressing the mute button the first time will silence the audio. Pressing it a second time will generate a prompt on the display that will read: "Lockout?" Press it a third time to confirm that you want to lock this signal out by location and frequency. A "Stored" message will be displayed.
Is the 12V SmartCord required to power an ESCORT premium radar compatible with BMW models?
Yes, the SmartCord is compatible with your BMW, but might require a Standard Female Hella0(DIN) socket to Cigarette lighter type Socket adapter.
